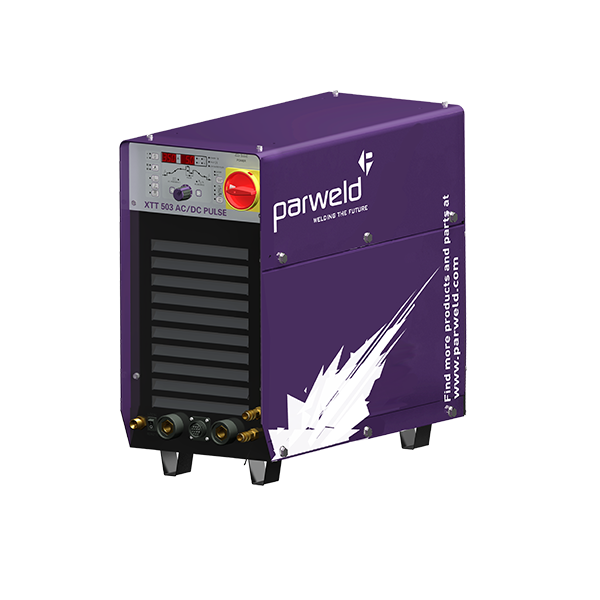

XTT503 TIG inverter

Description

Model XTT503 AC/DC
output current 10-500 DC 15-500AC
input voltage 400V 3ph
input current max 29A
duty cycle 500A @ 60%
up slope function 0-10s
down slope function 0-10s
pre flow function 0-10s
post flow function 0-10s
DC function YES
AC function YES
HF Start function YES
pulse rating 0.5 – 200Hz
AC frequency 50-250Hz
MMA function YES
lift TIG function YES
Water cooler ready YES
fuse rating 32A
KVA 3.6
enclosure protection IP23S

Supplied with Pro Max Grip 18 Torch, Regulator
